Join your pipe, tube, and other flow control system elements with the high-performance strength and durability of carbon steel.
Sturdy, Reliable Pipe Connections with Carbon Steel
Fittings and flanges do the hard work of keeping your pipe infrastructure sturdy, leak-free, and safe—so it matters which materials you use in their construction. Carbon steel’s strength and other mechanical properties make it often an ideal choice to hold your equipment together and keep your flow control systems running smoothly and efficiently.
Build pipe and tube infrastructure you can depend on with American Stainless’ carbon steel pipe fittings and flanges.
Why Choose Carbon Steel for Flanges and Pipe Fittings?
Offering superior strength, durability, and reliability, carbon steel fittings and flanges ensure a high standard of robust construction and exceptional performance for structural and pipe applications across a wide range of industries. Due to its ease of manufacturing and its compatibility with various finishing processes, it can be made to resist many different types of corrosive environments and can be fabricated into shapes to meet a wide range of specifications and requirements for industrial pipe fittings and flanges.
Strength and Durability
Cost-Effectiveness
Versatility
Exploring Types of Carbon Steel Flanges and Fittings
Fittings and flanges have different sizes, shapes, and methods of attaching to pipe, tube, and valves. Our offerings of carbon steel fittings and flanges include:
Buttweld Fittings
Buttweld carbon steel fittings are welded directly to pipe segments to provide a strong, permanent bond. These fittings can change the direction, branch off, or change the pipe size, depending on their shape.

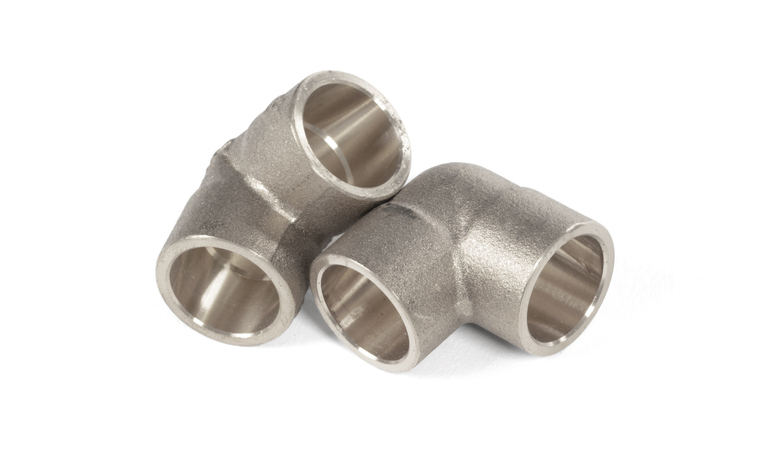

Pressure Fittings
These carbon steel pipe fittings are designed to withstand especially high-pressure applications, using threaded or socket-weld connections for greater strength. They are often used in hydraulic or gas lines.
Socket Weld Flanges
Smaller high-pressure systems use double-welded carbon steel flanges to provide durable connection in high-pressure and high-temperature applications by welding around both the inside and outside.
Slip-On Flanges
The simplest type of carbon steel flange to install, slip on flanges are easy to attach and align before being welded in place, providing structural support for pipe and tube systems in low-pressure applications.
Choosing the Right Carbon Steel Fittings and Flanges
With many different types of carbon steel fittings and flanges to choose from, making the right choice matters. Each different type of connection has its own advantages and disadvantages that make them more or less useful than others depending on the environmental conditions, types of fluid the system will be handling, and other factors. To make sure to select the right fittings and flanges, make sure to consider these three key factors:
Operating Conditions
Make sure your selection of carbon steel flanges and fittings are rated for the temperature, pressure, and the specific mechanical properties of the fluids or gases being handled to ensure long-lived, issue-free flow control.
Corrosion Resistance
Assess your options for carbon steel based on the corrosivity of your operating environment and make sure to choose alloyed or treated carbon steel that can withstand corrosion or humidity as needed.
System Compatibility
Make certain the carbon steel flanges and fittings you select match the size, schedule, connection types, pressure ratings, and other standards of your existing PVF equipment to ensure consistency, security, and safety.
Sizing Options for Carbon Steel Fitting and Flanges
Matching the right pressure rating and schedules to specific application requirements is essential to make certain your pipe system can handle the rigors of your applications and is safe for your personnel to work on and around.
At American Stainless, our extensive inventory of carbon steel flanges and fittings come in all shapes and sizes, with schedules ranging from S5 to 6000# and pressure ratings as low as 150# and as high as 2500#.
Our inventory ensures that whatever industry you work in, you can find flanges and fittings that are compatible with your existing pipe infrastructure and your own needs.
Fitting Schedules:
-
S5
-
S10
-
S40
-
S80
-
XH
-
S160
-
XXH
-
150#
-
2000#
-
3000#
-
6000#
Flange Pressure Ratings:
-
150#
-
300#
-
600#
-
900#
-
1500#
-
2500#
Get the carbon steel flanges and fittings your project needs ASAP.
Start A Quote
The Industrial Uses of Carbon Steel Fittings and Flanges
Carbon steel makes flanges and fittings ideal for industrial applications such as:
Oil and Gas
Using carbon steel for fittings and flanges enables pipelines, refineries, and processing plants to manage high temperatures and extreme conditions.
Chemical Processing
With the right treatments or alloys, carbon steel is extremely effective at withstanding various aggressive and non-aggressive chemicals.
Power Generation
Carbon steel flanges and fittings are integral to high-pressure, high-temperature steam and water pipe systems.
Water Treatment
The robustness of carbon steel ensures long-term reliability in pipe systems across intake and distribution lines in water treatment plants.
Industrial HVAC
Carbon steel provides flanges and fittings with the strength and leak resistance needed to transport air and fluid through HVAC systems.
Marine Applications
Shipbuilding and other marine applications can depend on carbon steel for flanges and fittings that can withstand seawater exposure.
Best Practices for Carbon Steel Flanges and Fittings
Carbon steel flanges and fitting are reliable, durable, and dependable in high-pressure and high-temperature systems, but only as long as you follow best practices to reap the greatest possible rewards in operational efficiency and cost savings over their service lifetime.
Selection and Installation
- Choose the right type and size of carbon steel flange and fitting for your system based on pressure rating, temperature conditions, and chemical compatibility.
- Ensure that both the flange faces and the pipes are clean and free from any debris or imperfections before installation to prevent leaks.
- Align flanges and fittings precisely to avoid stress and ensure a uniform load distribution across the joint.
- Always use gaskets that are compatible with the operating conditions of your pipe system.
Operation
- Regularly check the system pressure to ensure it stays within the limits of your carbon steel fittings and flanges’ rating.
- Monitor the operating temperatures to avoid exceeding the thermal limits of the carbon steel, which can lead to reduced strength and deformation.
- Prevent any external forces such as bending or vibration from affecting the flanges and fittings to reduce the risk of damage or failure.
Maintenance and Troubleshooting
- Perform routine visual inspections of your carbon steel fittings and flanges for signs of wear or leakage. Detecting these issues early can prevent more serious problems down the line.
- Make sure to periodically replace gaskets as recommended by the manufacturer, as they can degrade over time and lead to leaks.
- Apply protective coatings or inhibitors if the fittings and flanges are exposed to corrosive environments and check regularly for signs of corrosion.
- Check bolt tightness regularly, especially after temperature fluctuations or initial installation, as bolts may loosen over time.
Why Choose American Stainless for Carbon Steel Flanges and Pipe Fittings?
Quality is everything at American Stainless. Through our partnership with best-in-class manufacturers of carbon steel PVF components and our commitment to fast, accurate service, we ensure our customers receive the carbon steel fittings and flanges they need to provide long-term stability, safety, efficiency, and reliability to their pipe and flow control systems, even in demanding and rigorous industrial applications.
Get started on a quote for carbon steel pipe fittings and flanges and discover how we can help your projects achieve the highest quality results:
