Engineered for severe service, triple offset butterfly valves use a metal sealing system and triple-offset geometry to deliver zero-leakage shutoff, high temperature capability, and reliable performance in demanding industrial applications.

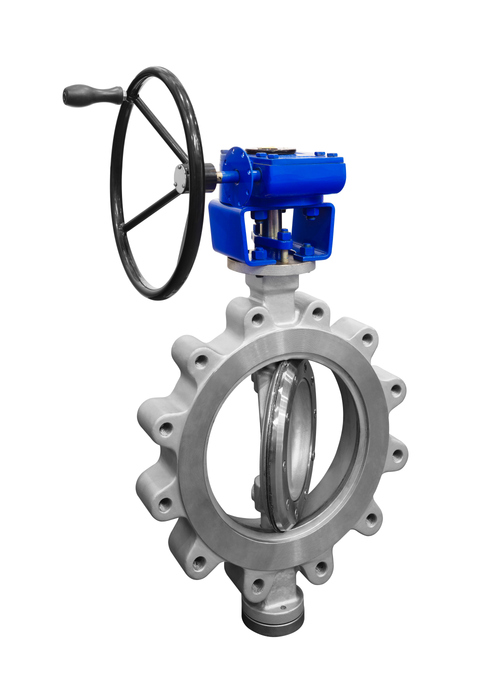

Triple Offset— Precision Sealing for Severe Service
Triple offset butterfly valves use a uniquely engineered disc and seat alignment that prevents rubbing, reduces wear, and delivers reliable metal-to-metal sealing.
The third offset — a conical, elliptical sealing surface — ensures the disc only contacts the seat at the final degree of closure, enabling true zero-leak performance.
This combination of precise geometry and durable materials makes triple offset valves ideal for steam, hydrocarbons, high-temperature gases, and other severe-service applications.
What Are Resilient Seated Butterfly Valves?
A resilient seated butterfly valve uses a central disc and soft seat to regulate or isolate flow within a pipeline. When the handle or actuator turns the stem, the disc rotates a quarter turn to move from fully open to fully closed. The concentric design — with the stem and disc aligned at the center — ensures balanced operation and low torque requirements.
Why Choose Triple Offset Butterfly Valves?
Triple offset butterfly valves are designed for severe-service environments where standard and high-performance valves reach their limits. Their metal-to-metal sealing, zero-friction operation, and ability to withstand extreme temperatures make them ideal for critical isolation and control applications.
- Zero-leak metal sealing for high-pressure steam, hydrocarbons, and demanding process media.
- High temperature capability that supports severe-service conditions where soft-seated valves cannot operate.
- Reduced seat wear thanks to contact-only-at-closure geometry, extending service life.
- Fire-safe construction options for systems requiring added protection and compliance.
- Precise control performance suitable for throttling or modulating service in critical processes.
Types of Triple Offset Butterfly Valves
Triple offset butterfly valves are available in several configurations to meet the demands of high-temperature, high-pressure, and severe-service systems. Each design offers its own advantages depending on media, operating conditions, and compliance requirements.
Common varieties include:
Fire-Safe Triple Offset Valves
Built with metal backup seats that maintain shutoff capability after exposure to extreme heat, supporting fire-safe standards in oil, gas, and chemical applications.
Cryogenic Triple Offset Valves
Designed with extended bonnets and specialized sealing materials to handle liquefied gases, low-temperature service, and rapid temperature swings.
High-Cycle Metal Seated Valves
Engineered for frequent operation and long service life in demanding industrial systems with high cycle counts.
Automated Triple Offset Valves
Compatible with pneumatic, electric, or hydraulic actuators for precise remote control and integration into automated process environments.
How to Choose the Right Triple Offset Butterfly Valve
Choosing the correct triple offset butterfly valve ensures reliable shutoff, safe operation, and long-term performance in severe-service environments. Because these valves are often used in critical applications, selecting the right materials and configurations is essential.
Pressure Class and
Temperature Limits
Triple offset valves are commonly available in ANSI Class 150, 300, and higher. Matching the valve’s pressure and temperature rating to system conditions ensures stable, leak-free performance in steam, hydrocarbon, and high-energy applications.
Seat and Disc
Material Selection
Hard-faced stainless steel, Stellite®, and other high-alloy materials offer different levels of abrasion, corrosion, and thermal resistance. Selecting the correct seat and disc metallurgy ensures reliable sealing and long life in demanding media.
Application and
Media Compatibility
Whether handling steam, chemical fluids, hydrocarbons, or industrial gases, verifying compatibility between valve materials and media prevents corrosion, galling, and sealing issues over time.
How Triple Offset Butterfly Valves Are Used
Triple offset butterfly valves are purpose-built for systems where temperature, pressure, or process conditions demand a hardened metal seal and frictionless operation. Their zero-leak performance and ability to withstand severe service make them a preferred choice across critical industries.
Refining and Petrochemical Processing
Provides reliable isolation and tight metal-to-metal shutoff for hydrocarbons, vapors, and high-temperature fluids in units where safety, compliance, and uptime are essential.
Power Generation and Steam Systems
Maintains sealing integrity in high-pressure steam, superheated water, and auxiliary steam loops where elastomer or soft seats cannot withstand sustained heat.
Chemical and Process Industries
Handles corrosive, abrasive, or high-purity media with engineered alloys and hardened seat materials that resist wear and chemical attack.
Oil & Gas Transmission and Storage
Supports pipeline isolation, tank farm operations, and gas processing with fire-safe designs that meet rigorous safety and environmental standards.
Pulp and Paper Production
Controls high-temperature process liquids, bleaching chemicals, and steam service where durable metal seating is needed for long cycle life.
Marine and Offshore Applications
Delivers dependable operation in shipboard and offshore environments with fluctuating pressures, corrosive conditions, and limited access for maintenance.
Best Practices for Installing, Operating & Maintaining Triple Offset Butterfly Valves
Proper installation and upkeep ensure reliable metal-to-metal sealing, long service life, and safe performance in severe-service applications.
Installation Tips
- Confirm correct pipe alignment to avoid stress on the disc, seat, and stem assembly.
- Ensure the disc has full clearance through the valve bore without contacting adjacent components.
- Follow manufacturer torque guidelines for flange bolts to prevent seat distortion or leakage.
- Verify correct flow direction when applicable, especially for fire-safe or pressure-biased seat designs.
Operating Guidelines
- Cycle the valve slowly during startup to confirm smooth, friction-free operation of the disc and seat.
- Match the actuation method (manual, gear, pneumatic, electric, or hydraulic) to the system’s pressure and cycling frequency.
- Avoid throttling outside of recommended ranges to protect the metal seating surfaces from unnecessary wear.
Maintenance Considerations
- Inspect sealing surfaces, hard-facing, and lamination edges periodically for signs of wear or erosion.
- Check actuator mounting hardware and stem packing for alignment and proper tension.
- Remove buildup or debris that could compromise the metal-to-metal seal or restrict movement.
- Follow manufacturer intervals for packing adjustments or seat inspection to maintain peak sealing performance.
